Front Panel Quick Check

[sethk]

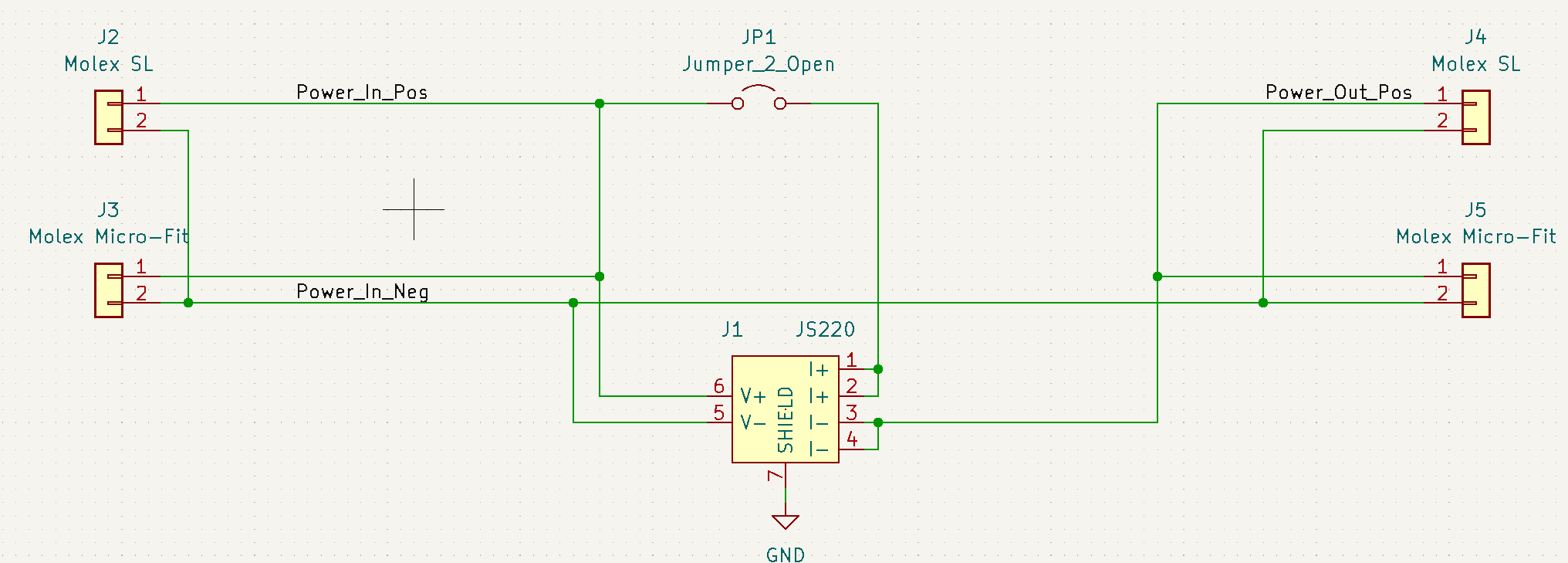

I’m making a quick front panel for my JS220, and I was wondering if I could get a quick sanity check on my schematic.

I often make quickie custom cables using those connectors series. Also, having a power-in/power-out organization makes more sense to my brain rather than the V-sense/I-Sense that is the how the sensor works.

Also, what is the intention behind the double I+/I- pins? Is that supposed to be some sort of Kelvin connection style?

[mliberty]

Hi @sethk - schematic looks good to me, just like JS110 style connections.

The double pins on I+ and I- are for current carrying capacity and to halve the impedance.
